Gel Casting Set -L (Included in the Mupid-2plus system.)
pcs.
Gel Tray-L
Gel Size:107mm(W)x60mm(L)
Lines are printed as the standard of migration distance. Used to form a large-size gel.
2
Gel Tray-S
Gel Size:52mm(W)x60mm(L)
Lines are printed as the standard of migration distance. Used to form a mini-size gel.
4
Comb-L
For mini-size gel :
4.0mm(W) x 1mm(D) x 8wells or
6.5mm(W) x 1mm(D) x 6wells
For large-size gel :
4.0mm(W) x 1mm(D) x 17wells or
6.5mm(W) x 1mm(D) x 12wells

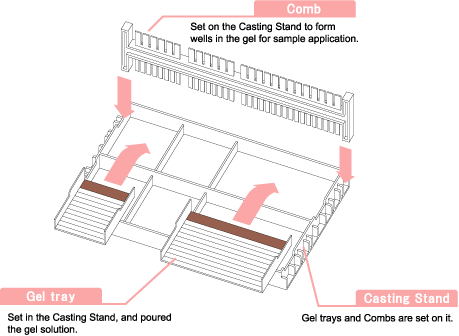

Set on the Gel Casting Stand-L to form wells in the gel.
2
Gel Casting Stand-L
Gel Trays are set on it to form gels.
2 mini-size gels and 4 large-size gels can be formed at a time.
1
Gel Casting Set -ex (Included in the Mupid-exU system.)
pcs.
Gel Tray ex-L
Gel Size:125mm(W)×60mm(L)
No lines are printed so as not to disturb UV illumination to the gel. Used to form a standard-size gel.
1
Gel Tray ex-S
Gel Size:125mm(W)×122mm(L)
No lines are printed so as not to disturb UV illumination to the gel. Used to form a maximum-size gel.
2
Comb-ex
2.0mm(W) x 1mm(D) x 26wells or
6.0mm(W) x 1mm(D) x 13wells
Set on the Gel Casting Stand-ex to form wells in a gel. 4 combs can be set on the maximum-size gel.
4
Gel Casting Stand-ex
Gel Trays are set on it to form gels. 2 standard-size gels or a maximum-size gel can be formed. The Center Partition is removed in forming a maximum-size gel.
